Always consult with the manufacturer of the connecting hardware?to ensure that you certify the installation in agreement with their warranty requirements and plan ahead, as availability at your distributor may not meet your project time line.

It is critical that you know the wiring code of the installation you wish to test. Unlike RJ45 test leads, IDC modules are color code specific. If you are testing Category 5e IDC modules, DSP-PM10A or DSP-PM10B would normally be used. (Except ADC/KRONE) If you are testing Category 6 IDC modules, please review the list below (Click on the Manufacturer for a photo). DSX-PLA004 users will need to purchase the DSX-PLA001 in order to use these modules.

不同于RJ45模塊，IDC模塊特別的，如果是測試CAT 5E IDC模塊，可以選擇DSP-PM10A或者 DSP-PM10B模塊，如果是測試CAT 6 的IDC模塊，可以選擇DSX-5000加上DSX-PLA001模塊。

• DSP-PM10A or DSP-PM10B: SYSTIMAX? 110 (Avaya/Lucent)
• DSP-PM11A or DSP-PM11B: Belden (NORDX) GiGAbix
• DSP-PM12A or DSP-PM12B: Panduit GIGA-PUNCH
• DSP-PM13A or DSP-PM13B: Siemon S210 & Hubbell
• DSP-PM14A or DSP-PM14B: ADC/KRONE Ultim8
• DSP-PM15A or DSP-PM15B: ADC/KRONE Highband
• DSP-PM16A or DSP-PM16B: Leviton/HellermannTyton
• DSP-PM17A or DSP-PM17B: Tyco/AMP 610 XC
• DSP-PM19A or DSP-PM19B: SYSTIMAX? VisiPatch? 360

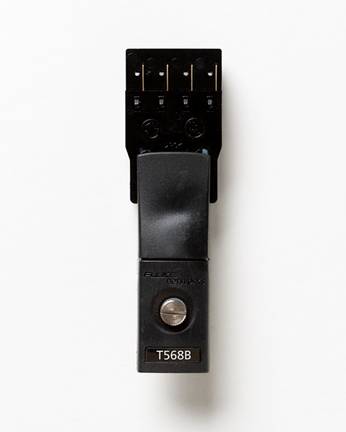

DSP-PM10A/DSP-PM10B: SYSTIMAX? 110 (Avaya/Lucent)

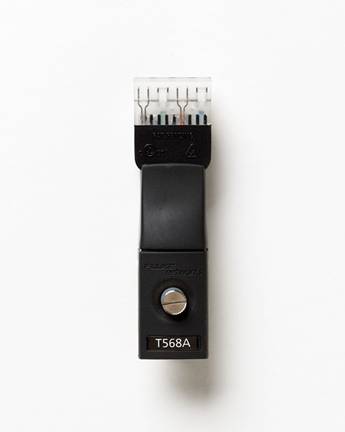

DSP-PM11A/DSP-PM11B: Belden (NORDX) GiGAbix

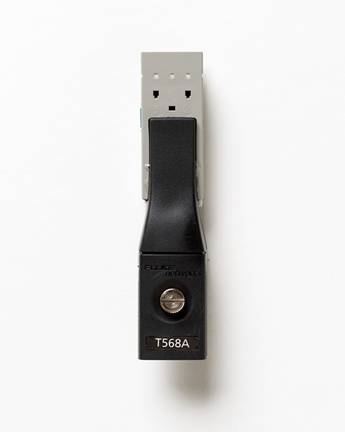

DSP-PM12A/DSP-PM12B: Panduit GIGA-PUNCH

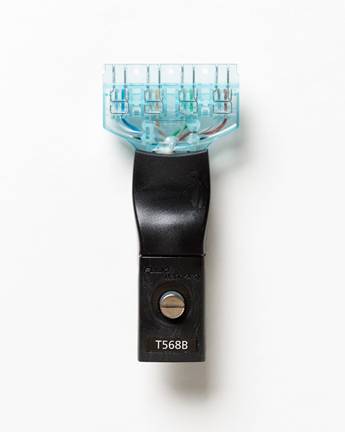

DSP-PM13A/DSP-PM13B: Siemon S210 & Hubbell

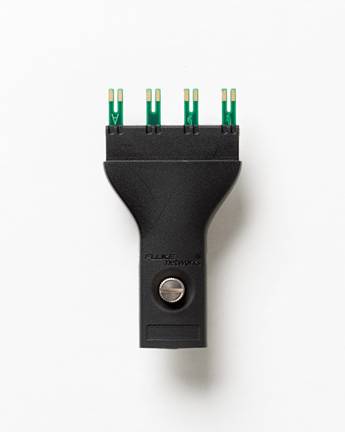

DSP-PM14A/DSP-PM14B: ADC/KRONE Ultim8

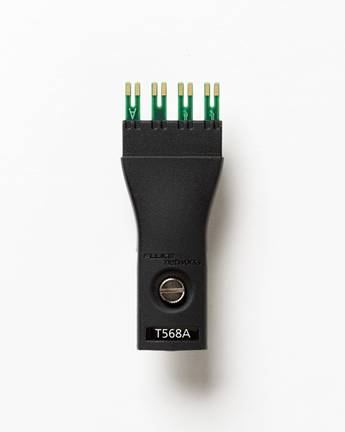

DSP-PM15A/DSP-PM15B: ADC/KRONE Highband

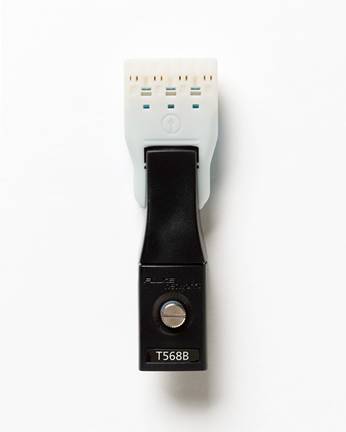

DSP-PM16A/DSP-PM16B: Leviton/HellermannTyton

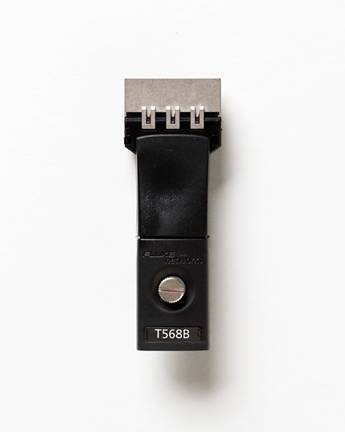

DSP-PM17A/DSP-PM17B: Tyco/AMP 610 XC

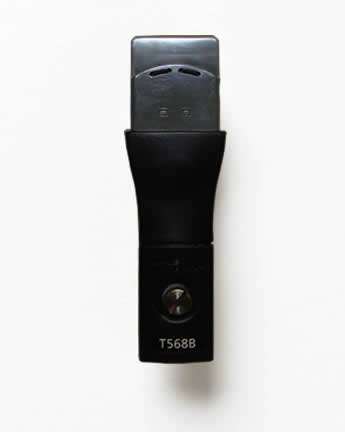

DSP-PM19A/DSP-PM19B: SYSTIMAX? VisiPatch? 360
